Core concepts

Tenants and organizationsCopy Anchor Link

An organization runs one OrkStage installation. It serves tenants, the customers or teams that own instances. Every record that belongs to a tenant carries its tenant id. A user sees a tenant only through a membership with one of the roles. A tenant can have limits.

Instance (stage)Copy Anchor Link

An instance, also called a stage, is one isolated, logical environment for one tenant. It holds the services, database, cache, queue, storage, ingress and DNS, for example Acme Production or Acme Staging. Each instance has an environment kind (production, staging, development or sandbox), a template version, variable values and one placement binding per slot.

The instance status follows a state machine, and every transition is validated:

The failed states are VALIDATION_FAILED, PLAN_FAILED, PROVISION_FAILED, DEPLOY_FAILED (also from CONFIGURING) and VERIFICATION_FAILED. A rejected approval ends in PLAN_FAILED, and a destroy cancelled before anything was deleted returns the instance to READY.

Only one operation runs on an instance at a time. A second deploy or destroy gets 409 INSTANCE_BUSY.

TemplateCopy Anchor Link

A template (apiVersion: platform/v1, kind: EnvironmentTemplate) describes business intent, never provider resource blocks. Examples: "a container service with two replicas", "a Postgres database spread across availability zones", "private connectivity from api to database".

Templates are versioned. A published version never changes, and an instance moves to a new version only through an explicit upgrade. OrkStage ships six templates, from free-validation to multicloud-reference. See the template reference.

Placement slots and cloud targetsCopy Anchor Link

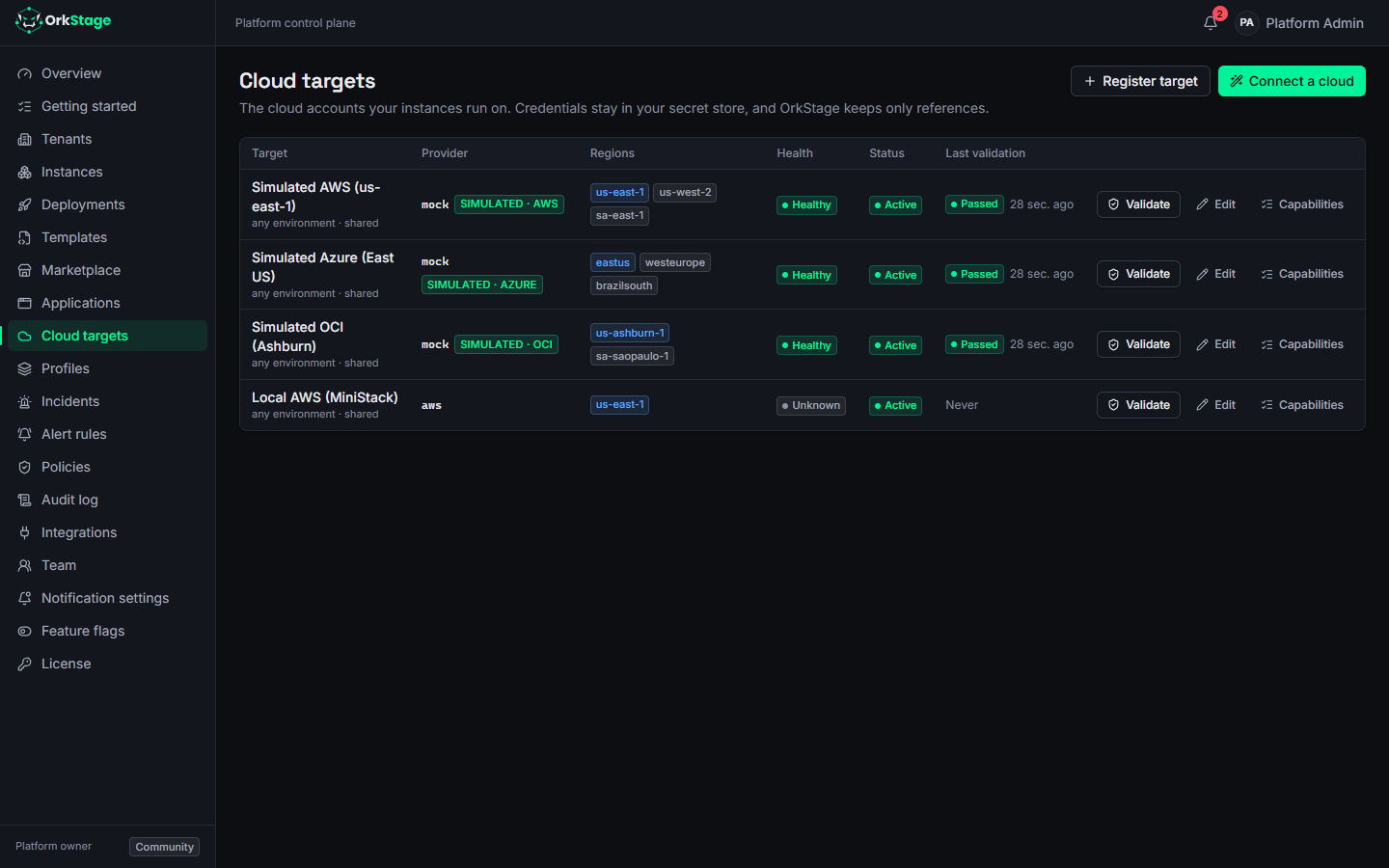

A cloud target is an account you register with a provider: an AWS account, an Azure subscription or an OCI tenancy. It stores the allowed regions and configuration that is not secret. Credentials are stored as references, never as values.

A template declares placement slots such as primary, data and storage, and lists the providers each slot accepts. Every resource names a slot, and an instance binds each slot to a target and a region. Bind all slots to one AWS account and the template runs on a single cloud. Bind data to Azure and the same template becomes multicloud.

See ADR 0001.

One account per environmentCopy Anchor Link

Most organizations keep production, staging and development in separate accounts of the same provider. Register one target per account, each with its own credentials, and set the environment it serves: production, staging, development or sandbox. An instance can only deploy into targets of its own environment; the target-environment policy stops a production instance from landing in a development account, and a development instance from touching production. Mark a target any only when it is meant for every environment, such as the simulation targets.

Target names are unique within a tenant (and among shared targets), ignoring case.

ProfilesCopy Anchor Link

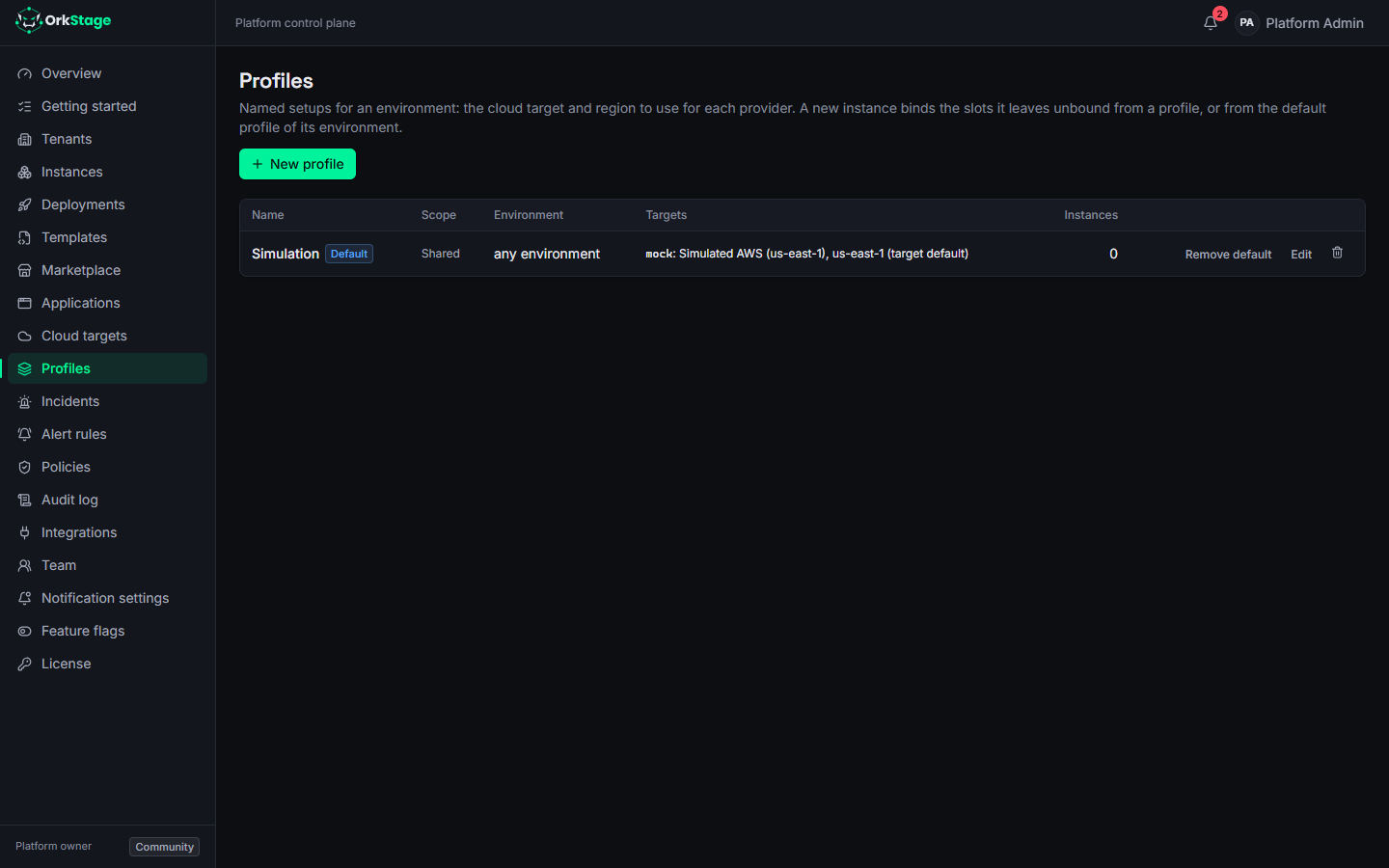

A profile gives a name to a setup for one environment: the cloud target, and optionally the region, to use for each provider. For example, "Production Europe" can name aws-prod in eu-west-1 and azure-prod in westeurope, and "Production Brazil" the same accounts in sa-east-1 and brazilsouth. Platform owners and admins create profiles in Profiles, shared with every tenant or for one tenant, and mark one default per environment.

When an instance is created, every slot it leaves unbound is bound from the profile it names, or from the default profile of its environment: the tenant's own default before a shared one, the exact environment before any. Each slot gets the profile's target for the first provider in the slot's list that the profile has, with the profile's region or else the target's default region. In the console, choose the profile on the placement step; with the API, send profileId and leave slots out of bindings; with the CLI, set [instance].profile and leave slots out of [placements].

Tenant members do not see cloud targets, so a profile is how they place an instance: they choose it, and OrkStage fills in the accounts. The bindings and the profile are stored with the instance, so editing or deleting the profile later never moves an existing instance.

CapabilitiesCopy Anchor Link

Each provider adapter publishes a capability catalog. For each logical resource type, it lists the concrete service that implements it, with its features, regional gaps and static list prices. For example, database.postgresql maps to rds-postgres on AWS, flexible-server on Azure and oci-postgresql on OCI. The resolver picks the default, or the implementation the template prefers, and suggests alternatives when nothing fits.

Tenant limits and featuresCopy Anchor Link

Platform owners and admins can give each tenant limits. Every limit is optional: a tenant without one may use anything the platform offers. Set them in Tenants > Limits or with PATCH /api/v1/tenants/{id} and a limits object.

What a tenant's templates may use is decided by feature flags, on by default and turned off for the platform or for one tenant: MULTI_CLOUD (resources on more than one provider), MULTI_REGION (more than one region of a provider), AUTOSCALING and CUSTOM_DOMAINS.

The compiler checks limits and features every time an instance is previewed or deployed, so an instance that no longer fits fails before anything changes. Templates do not name plans or tenants: any template whose resources fit can be used by any tenant (ADR 0007).

Plan (deployment plan)Copy Anchor Link

When you preview an instance, OrkStage compiles the template into a resolved infrastructure:

• variables applied;
• each resource bound to a target, a region and a capability;
• names and tags assigned;
• a dependency graph;
• a connectivity strategy for each link;
• a policy report and an approximate cost.

A diff against the known resources gives the deployment plan (create, update, delete, unchanged) and its risk. This step never touches a cloud. The deployment stores a snapshot of the plan, so OrkStage applies exactly what you previewed. See Reviewing plan & cost.

Deployment and the DAGCopy Anchor Link

A deployment applies a plan in the background. The worker runs fixed phases: validate, targets, plan, approval (when needed), resources, rollout, configure, verify, observability and finalize.

Resources are provisioned in dependency order, and independent branches run in parallel. The worker retries transient failures with backoff. A failed resource blocks only the resources that depend on it. After a worker crash, the deployment resumes where it stopped. See Deploying and watching progress.

Knowledge: desired, known, actualCopy Anchor Link

The database holds the desired state (template and configuration) and the known state (what OrkStage recorded). The provider holds the actual state. Each resource carries a knowledge state (DESIRED, KNOWN, ACTUAL or UNKNOWN) and a drift status.

Health, incidents and statusCopy Anchor Link

OrkStage checks health (HEALTHY, DEGRADED, UNHEALTHY, UNKNOWN or MAINTENANCE) on each resource and rolls it up to the instance. An unhealthy critical component makes the instance unhealthy. Any other problem makes it degraded.

Resources map to status components that customers see, such as API, Workers and Database, on a private status page. Alert rules open incidents, deduplicated per resource and subject to a cooldown. An incident resolves on its own when health returns. Notifications go to the console, to email and to signed webhooks.

AuditCopy Anchor Link

Every action that changes state writes an audit event with the actor (user or API key), tenant, resource, action, correlation id and changes. The audit table only accepts inserts. A Postgres trigger enforces this.
